FBH-4-MD-B, 1/4" Female NPT Panel Mount

Skip to the beginning of the images gallery

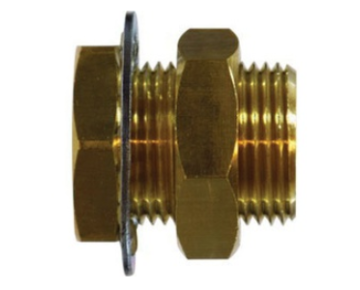

1/4" Female NPT Panel Mount
15/16" Length, 3/4-16 UNS Panel Thread, Panel Nut and Lock Washer Included, Brass, 1200 psi Max Pressure, -65°F to 250°F Temperature Range, Meets functional requirements of SAE J530

NOTE: Photo indicates part type.
See 'Specifications' below for actual part color and size.

Product Code:

FBH-4-MD-B

Availability: 397

$10.50 /EA

Qty

Request Information
Request Sample
Compare Items
Request Quote
Save for Later

Specifications

More Information
Connection 1	1/4" Female NPT
Connection 2	1/4" Female NPT
Length	15/16"
Panel Mount Thread	3/4-16 UNF
Material	Brass
Temperature Ratings	-65°F to 250°F
Pressure Ratings	1200 psi Max

Description

1/4" Female NPT Panel Mount, 15/16" Length, 3/4-16 UNS Panel Thread, Panel Nut and Lock Washer Included, Brass, 1200 psi Max Pressure, -65°F to 250°F Temperature Range, Meets functional requirements of SAE J530, J531

Downloads

Dimensional Drawing	Download
