• 1/16" Non-Barbed shaft
• Orifice sizes from 0.003 to 0.040
• Polysulfone and Polycarbonate

• 1/16 or 1/8" Hose Barb

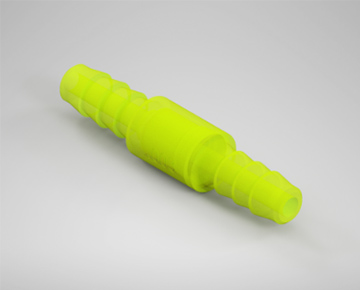

• Multi-barbed
• molded internal orifice
• Color coded sizes from 0.003 to 0.040
• Polysulfone or Polycarbonate

• 1/16" and 1/8" Hose Barb sizes
• The Orifice Restrictor and 316 Stainless Steel filter are encased in a molded housing
• 5, 43 and 73 Microns
• Available in ten color codes sizes 0.004" to 0.030"
• Pecision molded of Polysulfone
• Maximum operating pressure is 100 psi

• Connectors fitted with orifices
• Hose Barb sizes from 1/16” to 3/8”
• Orifice materials include Polysulfone, Brass and Stainless Steel
• Nylon and Polypropylene Body materials

• 1/16" Hose Barb to 3/8" Hose Barb
• 1/8" Male NPT and 1/4" Male NPT
• Orifice sizes from 0.003" to 0.0635"
• Polysulfone, Brass or Stainless Steel Orifices available
• Nylon and Polypropylene single barbed fittings

• 1/16" Hose Barb to 3/16" Hose Barb
• 10-32 Male UNF and 1/4-28 Male UNF
• Orifice sizes range from 0.003" to 0.0635"
• Polysulfone, Polycarbonate, Brass or Stainless Steel Orifices available
• Nylon and Polypropylene single barbed fittings

• 10-32 Male UNF to 1/4" Male NPT
• Orifice sizes range from 0.003" to 0.0635"
• Orifice materials include Polysulfone, Polypropylene, Brass or Stainless Steel
• Nylon or Polypropylene plug with an inserted orifice

• 5/32" Push-In to 1/2" Push-In
• 1/8" Male NPT to 1/2" Male NPT
• Orifice sizes range from 0.0039" to 0.1405"
• Orifice materials include brass and stainless steel
• Gray Acetal body material

• 5/32" OD Stem to 1/2" OD Stem
• 1/8" Male NPT to 1/2" Male NPT
• Orifice sizes range from 0.0039" to 0.1405"
• Orifice materials include Brass and Stainless Steel
• Gray Acetal body material

• Push In union with inserted orifice
• 5/32" OD Tube to 1/2" OD Tube
• Orifice sizes range from 0.0039" to 0.1405
• Orifice materials include brass and stainless steel
• Gray Acetal body material

Threaded orifices integrate one of Air Logic's best-selling product lines, orifice restrictors, with a threaded fitting to reduce system complexity. They work on the principle of Flow Restriction with the orifice diameter being identified in the part number. In addition to orifice diameter, Air Logic controls many smaller factors that have an impact on the total restriction of the orifice. This is why Air Logic's orifices are trusted to provide accurate and reliable flow performance across a variety of different markets. All of the Air Logics products are precision molded, assembled, and tested in America.

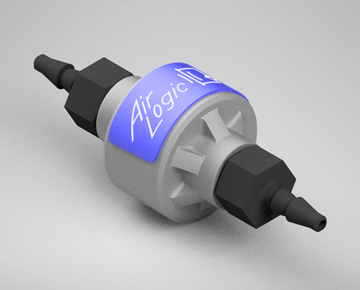

Directional Flow Controls apply orifice technology in one flow direction and free flow in the other. They work on the principal of Flow Restriction with the orifice diameter being identified in the part number. In addition to orifice diameter, Air Logic controls many smaller factors that have an impact on the total restriction of the orifice. A moving disk changes position based on the flow in the circuit. In the controlled direction, the orifice is the only path the media can flow through. In the opposite direction, the disk moves and the media is free to flow through the product unrestricted.
