Customized Fittings

Turn your design ideas into reality

We’re passionate about the little things at ISM. We understand that getting more precision by slightly modifying a connection can make all the difference in your application running smoothly.

For the times when the specific part you need is unavailable, we can help. Let our team spec, design, and customize standard fittings to meet your application requirements.

  • Connection modification
    • Adding threads or removing a barb
  • Precise flow control by adding:
    • an internal orifice
    • a check valve cartridge
    • a relief valve
  • Filtration
    • Insert a fitting into a larger filter body such as a suction strainer
  • Flow Control Assemblies
    • Cut to length tubing attached to standard or customized fittings



With ISM’s skilled Production Team, you get access to:

  • In-house engineering support
  • Guided material selection for chemical compatibility
  • Custom SolidWorks models and drawings
  • Skilled technicians for machining and assembly
  • ISO 9001:2015 processes to ensure quality
  • In-house product testing
  • Low minimums (30 parts or 300,000 parts, we've got you covered)
  • See all our Value Add Services


Our team will do it all: part sourcing, customization, assembly, bagging, and labeling. Rely on ISM to customize your fittings.




Get More Info



Customized Fitting Examples

The customer requested a specific flow rate but from a single, compact component. Our product engineers spec'd the correct orifice to achieve the desired flow rate. Our production team modified the elbow fitting and performed the final assembly.

Customer's Inquiry



1/8" Male NPT x 1/8" Hose Barb Elbow fitting with a 0.040 Brass Orifice

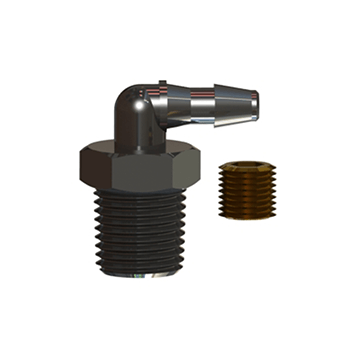

Product Components

Product Components of an elbow orifice fitting with a hose barb by Male NPT thread connections

Concept

Concept of an elbow orifice fitting with a hose barb by Male NPT thread connections

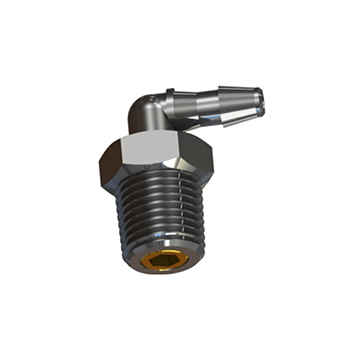

Finished Product
The final product of an elbow orifice fitting with a hose barb by Male NPT thread connections
