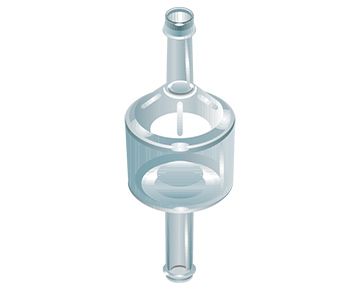

3/16" Hose Barb, High Flow Check Valve, R-722

Skip to the beginning of the images gallery

3/16" Hose Barb High Flow Check Valve
Clear Acrylic Body with Silicone Diaphragm
0.052 psi Cracking Pressure (std dev = 0.012 psi)

Product Code:

R-722

Availability: 4843

$2.40 /EA

Qty

Request Information
Request Sample
Compare Items
Request Quote
Save for Later

Specifications

More Information
Inlet	3/16" Hose Barb
Outlet	3/16" Hose Barb
Cracking Pressure	0.052 psi
Material	Clear Acrylic
Compliances	USP Class VI
Sterilization	Gamma \| ETO

Description

High Flow Check Valve, 3/16" (5.791mm) Barb, Clear Acrylic Body with Silicone Diaphragm, 0.052 psi Cracking Pressure (std dev = 0.012 psi), Flow Rate: 2.2 CFM (air at 20 psi), Maximum Backpressure: 50 psi, USP Class VI, ETO or Radiation Sterilizable
