3/32" Bond In Port, High Flow Check Valve, R-711

Skip to the beginning of the images gallery

3/32" Bond In Port High Flow Check Valve
Clear Acrylic Body with Silicone Diaphragm
0.039 psi Cracking Pressure (std dev = 0.007 psi)
Inner Diameter 3/32"
Outer Diameter 0.188"

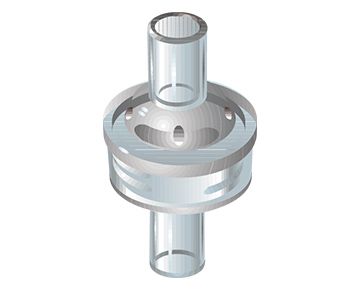

NOTE: Photo indicates part type.
See 'Specifications' below for actual part color and size.

Product Code:

R-711

Availability: 367

$2.40 /EA

Qty

Request Information
Request Sample
Compare Items
Request Quote
Save for Later

Specifications

More Information
Inlet	3/32" Bond In Port
Outlet	3/32" Bond In Port
Cracking Pressure	0.039 psi
Material	Clear Acrylic
Compliances	USP Class VI
Sterilization	Gamma \| ETO

Description

High Flow Check Valve, 3/32" Bond In Port, Clear Acrylic Body with Silicone Diaphragm, 0.039 psi Cracking Pressure (std dev = 0.007 psi), Inner Diameter 3/32" (2.54 mm), Outer Diameter 0.188" (4.775 mm), Flow Rate: 1.5 CFM (air at 20 psi), Maximum Backpressure: 50 psi, USP Class VI, ETO or Radiation Sterilizable
