1/4" Bond In Port, High Flow Check Valve, R-702

Skip to the beginning of the images gallery

1/4" Bond In Port High Flow Check Valve
Clear Acrylic Body with Silicone Diaphragm
0.035 psi Cracking Pressure (std dev = 0.007 psi)
Inner Diameter 1/4"
Outer Diameter 0.370"

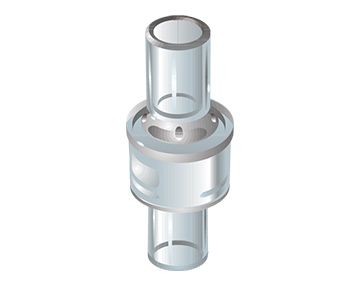

NOTE: Photo indicates part type.
See 'Specifications' below for actual part color and size.

Product Code:

R-702

Availability: 981

$2.40 /EA

Qty

Request Information
Request Sample
Compare Items
Request Quote
Save for Later

Specifications

More Information
Inlet	1/4" Bond In Port
Outlet	1/4" Bond In Port
Cracking Pressure	0.035 psi
Material	Clear Acrylic
Compliances	USP Class VI
Sterilization	Gamma \| ETO

Description

High Flow Check Valve, 1/4" Bond In Port, Clear Acrylic Body with Silicone Diaphragm, 0.035 psi Cracking Pressure (std dev = 0.007 psi), Inner Diameter 1/4" (6.477 mm), Outer Diameter 0.370" (9.398 mm), Flow Rate: 2.1 CFM (air at 20 psi), Maximum Backpressure: 50 psi, USP Class VI, ETO or Radiation Sterilizable
