1/8" Bond In Port High Flow Check Valve
Radiation Stable Polycarbonate Body with Silicone Diaphragm
0.062 psi Cracking Pressure (std dev = 0.006 psi)
Inner Diameter 1/8"
Outer Diameter 0.245"

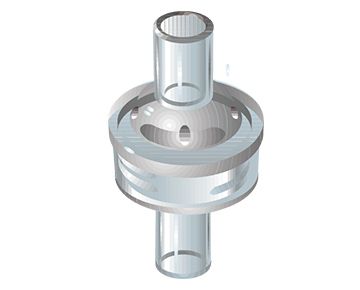

NOTE: Photo indicates part type.
See 'Specifications' below for actual part color and size.

Product Code:

R-701PC

Request Information
Request Sample
Compare Items
Request Quote
Save for Later

Specifications

More Information
Inlet	1/8" Bond In Port
Outlet	1/8" Bond In Port
Cracking Pressure	0.062 psi
Material	Radiation Stable Polycarbonate
Compliances	USP Class VI
Sterilization	Gamma \| ETO

Description

High Flow Check Valve, 1/8" Bond In Port, Radiation Stable Polycarbonate Body with Silicone Diaphragm, 0.062 psi Cracking Pressure (std dev = 0.006 psi), Inner Diameter 1/8" (3.302 mm), Outer Diameter 0.245" (6.223 mm), Flow Rate: 1.8 CFM (air at 20 psi), Maximum Backpressure: 50 psi, USP Class VI, ETO or Radiation Sterilizable
